Palm Oil Fractionation Equipment

Palm oil fractionation equipment separate palm oil into soft fat, hard fat and intermediates by controlling the crystallization point. The melting point of hard fat is 50°C and that of soft fat is 24°C.

Send Email

Chat Now

Share With:

Product Description Dry fractionation method of palm oil Palm oil fractionation process Features Related Products

Product Description

Palm oil fractionation is an important process of palm oil refining plant. This new type of palm oil fractionation equipment includes a new type of crystallization tank, a diaphragm filter and advanced automatic control system. It uses a scientific cooling and crystallization process to improve the yield of liquid palm oil.on technology has strong adaptability and a wide range of applications. It can not only obtain palm oil and palm kernel oil with different melting points such as 8 degrees, 10 degrees, 14 degrees, 18 degrees, 24 degrees, 33 degrees, 44 degrees, 55 degrees, etc. This fractionation process can also be used for the fractionation of tallow, deep-sea fish oil, cottonseed oil, rice bran oil and other oil products, which greatly increases the added value of oil products and increases the economic benefits of enterprises.
Palm oil fractionation is an important process of palm oil refining plant. This new type of palm oil fractionation equipment includes a new type of crystallization tank, a diaphragm filter and advanced automatic control system. It uses a scientific cooling and crystallization process to improve the yield of liquid palm oil.

Dry fractionation method of palm oil

Dry fractionation is one of the most economical methods. It refers to the method of slowly cooling the oil in the dissolved state to a certain extent without adding any solvent, and then filtering the crystallization to separate the solid ester.

Heating

Palm oil is a semi-solid state at room temperature, and its saturated acid and unsaturated acid each account for about 50%. Palm oil is dissolved into a liquid state by steam heating before processing. Generally, palm oil is heated to about 70°C before crystallization to destroy all existing crystals.

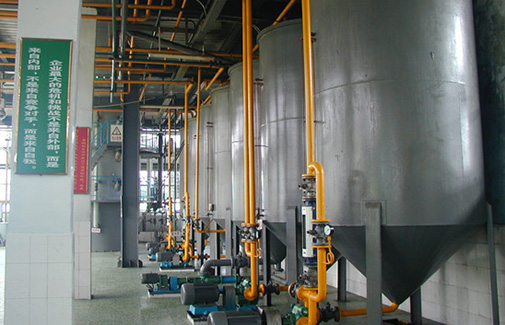

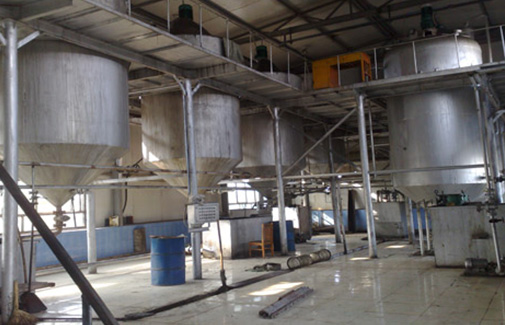

Cooling and crystallization

The key to the dry fractionation process is cooling and crystallization. Under stirring and circulating water cooling, the cooling process is controlled by setting the temperature difference between the oil and cooling water and the cooling time to form crystal nuclei and grow slowly. When the required temperature is reached (depending on the quality of the soft fat that is finally required, generally 20°C), stop cooling.

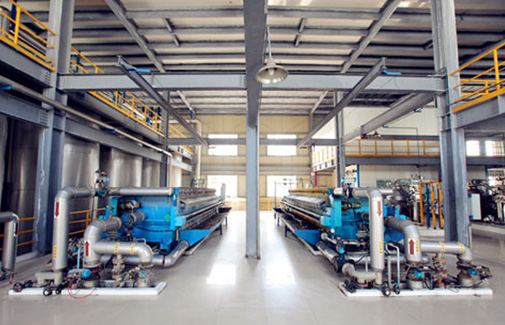

Filter

The selection of filter equipment also has a greater impact on the yield of liquid oil. Diaphragm filters have been widely used in the palm oil fractionation industry. This is because the soft fat extracted by the diaphragm filter has a higher yield (70% to 75%), and the hardness of the hard fat is also higher.

Palm oil fractionation process

Refined palm oil → heating section → crystallization section → filtration section → palm soft fat + palm stearin

Features

Palm oil fractionation production process, dry fractionation process, advanced technology;

Computer fully automated operation, high degree of automation control, low investment cost;

High liquid oil yield, high solid fat purity and product quality;

Low steam consumption and high economic benefit;

There is no need to use a centrifugal separator, no solvent, no waste water and other advantages.

Edible Oil Processing With Dingsheng Machine

Dingsheng Machine is a leading manufacturer specializing in edible oil processing solutions and equipment in China, we provide complete plant solutions for oilseeds pretreatment, solvent extraction, refining and deep processing. More than 20 years’ experience, we are committed to optimizing technology processes, engineer design, project management, installation and training, help customer build the oil mill over the world. When you plan to build an vegetable oil processing plant, please contact us today to get the quote.
Email: company@dingmachinery.com, whatsapp: +86-159 3716 3029.
