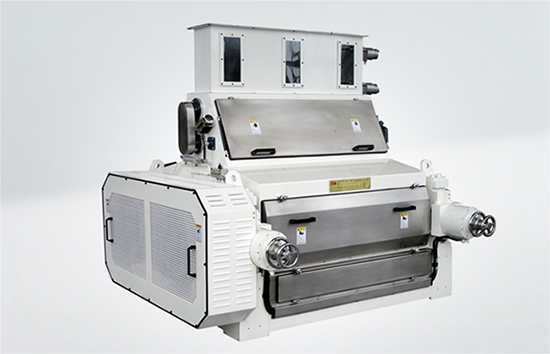

Flaking Roll

The YYPYFP type flaking roll designed and developed by our company has uniform crushing, stable operation, small supporting power and high production efficiency.

Send Email

Chat Now

Share With:

Product Description Working Principle Parameters Features Related Products

Product Description

The YYPYFP type flaking roll designed and developed by our company has uniform crushing, stable operation, small supporting power and high production efficiency. It is specially developed and designed for the problem of oily materials such as almonds, walnuts, peanuts, sunflower, oily materials, soybeans, etc., which are easy to produce oil during crushing and sticking to the machine cavity. It can effectively crush materials with high oil content without yielding oil, non-stick machine, continuous discharge. This machine is widely used in oil factories, breweries, and feed processing. easy operating, good particle uniformity, easy to repair and maintain.

Working Principle

The flaking roll is a kind of equipment that consists of two or several relatively rotating rollers to roll the oil from granular to flakes.

Destroy Cell Structure

Oil is contained in oily cells with tough cell walls. To extract oil from the cell, the cell wall must be destroyed.

Shorten The Oil Way

After the granular oil is rolled into flakes, shortening the path that the oil is extracted from the oil seeds, which provides favorable conditions for pressing or leaching production.

It is conducive to the oil seeds steam cooking

The flaking increases the surface area of the oil seeds and reduces the thickness, which is convenient for absorbing moisture and heat, and the moisture evaporation.

Parameters

Model	Capacity （t/24h）	Thickness（mm）	Power（kw）	Dimension size （mm）	Weight（tons）
YYPY26080	50~60	0.25~0.35	18.5X2+0.37+1.1	1800X1300X2000	4
YYPYFP2X60X100	80~100	0.25~0.35	22X2+0.55+2.2	1910X1670X1835	6
YYPYFP2X80X100	120~150	0.25~0.35	30X2+0.55+2.2	2250X2230X2100	10
YYPYFP2X80X125	180~200	0.25~0.35	37X2+0.55+2.2	2500X2230X2100	13
YYPYFP2X80X150(D)	280~320	0.25~0.35	55X2+1.1+2.2	2760X2230X2150	14

Features

The whole machine adopts fully enclosed safety protection, and the safety protection adopts imported carbon steel plate and lightweight wear-resistant high-quality aluminum plate.

The roll control adopts the square bearing seat, the operation more stable and reliable, and lower noise ;

The unique design structure is convenient to directly adjust the thickness of the flakes, and has a reliable anti-collision function of the roller;

It can adopt the compound feeding of equalizing roller and toothed roller to ensure more uniform feeding, and the feeding amount can be controlled by frequency conversion;

Using centrifugal casting high-alloy rolls, through-shaft assembly technology, strong rigidity, good working stability;

The hydraulic cylinder of the flaking roll increases the energy storage of the accumulator to realize the buffer rolling, the flakes is more stable and longer service life;

The hydraulic station is automatically controlled by small PLC electric auto-control, which can realize the automation of the whole machine.

Equipped with automatic bearing remover. The bearing can be easily disassembled. It can meet the daily processing capacity of 20T-500T of different production flaking.

Dingsheng high efficient flaking roll has uniform crushing, stable operation, small supporting power and high production efficiency.
We have different models and different capacities of products to meet the needs of different customers. If customers have special requirements, we can customize for you. Thank you.

Edible Oil Processing With Dingsheng Machine

Dingsheng Machine is a leading manufacturer specializing in edible oil processing solutions and equipment in China, we provide complete plant solutions for oilseeds pretreatment, solvent extraction, refining and deep processing. More than 20 years’ experience, we are committed to optimizing technology processes, engineer design, project management, installation and training, help customer build the oil mill over the world. When you plan to build an vegetable oil processing plant, please contact us today to get the quote.
Email: company@dingmachinery.com, whatsapp: +86-159 3716 3029.
