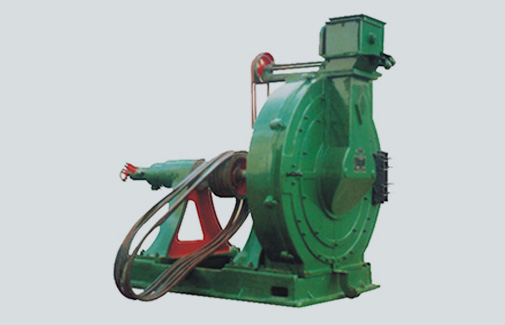

Disc Sheller
The disc shelling machine is suitable for the shelling process of oil materials such as cottonseeds, sunflowers, peanuts, etc.
Share With:
Product Description
The disc shelling machine is suitable for the shelling process of oil materials such as cottonseeds, sunflowers, peanuts, etc., and can also be used as crushing equipment for soybeans and peanuts in the oil extraction process. The gap between the fixed disk and the movable disk is adjustable, which is suitable for processing different materials and avoids damage to the raw materials.
Parameters
|
Model No. |
RB-BKY71 |
RB-BKY91 |
RB-BKY127 |
RB-BKY128 |
|
Grinding slice of diameter |
710 mm |
910 mm |
1270 mm |
1280 mm |
|
Capacity |
35 t/d |
50-60 t/d |
80-150 t/d |
100-170 t/d |
|
Main shaft speed |
1200 r/min |
910 r/min |
840-880 r/min |
840-880 r/min |
|
Power |
18.5 kw |
30 kw |
45 kw |
45 kw |
|
Out size(mm) |
1820×940×1382 |
2160×1200×1632 |
2400×1620×1980 |
2400×1620×1980 |
|
Weight |
1100 kg |
1700 kg |
2600 kg |
2600 kg |
Features
1
The processing capacity of the disc sheller is large, and the relative power is small.
2
The shell breakage rate is high, and the whole seed does not need to be broken back.
3
When the shell is broken, the short lint is rubbed off. If the shell is broken, a wind net can be installed to remove part of the short lint, which is beneficial to the separation of shell and kernel and the improvement of cake and meal protein. The recovery of short lint can ensure the whole factory has a good working environment.
4
Easy to adjust, it can automatically rebound when entering hard foreign objects.
5
Simple structure, convenient operation and cover a small area.
